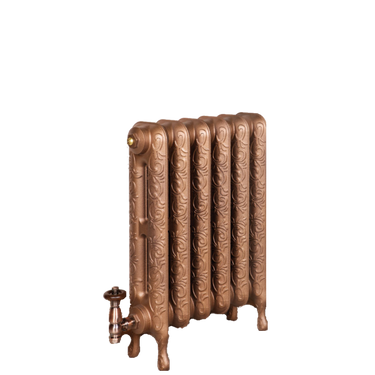

Art Nouveau Cast Iron Radiators 580mm
Art Nouveau Cast Iron Radiators 580mm
£122.40 inc VAT
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Elegant Lines Inspired by 1890s Design
The Art Nouveau 580mm Cast Iron Radiator is the smaller of two sizes in this decorative range, inspired by the flowing, organic patterns of the Art Nouveau movement from 1890 to 1910. With its slender profile and intricate scrollwork, this radiator brings refined period style to both traditional homes and design-led interiors.
Cast from original moulds and hand-assembled in our UK workshop, each radiator is made to order and finished to your exact specifications. Choose from our wide selection of painted, metallic, or hand-polished finishes to complement your space. Fully assembled and pressure tested to 8 bar, this radiator conforms to all BS EN standards and is backed by a 10-year guarantee.
Suitable for all heating systems—including renewables—and subject to our strict quality control process, the Art Nouveau 580mm combines graceful form with dependable performance.
Call 01723 321 000 to order or customise your radiator today.
Product specifications
| BTU output (Delta 50) per section | |
|---|---|
| Watts Output (Delta 50) per section | |
| BTU output (Delta 30) per section | |
| Watts Output (Delta 30) per section | |
| Weight (kg) | |
| Section Length (mm) | |
| Height (mm) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.
Painted Cast Iron Radiators - Stock Colours £7.20 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 01723 321 000 to discuss your requirements.
Metallic Cast Iron Radiators - from £20.40 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators - from £12 per section
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.
Hand Polished Cast Iron Radiators - from £30 per section inc VAT
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators - £12 per section inc VAT
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful English Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 01723 321 000.
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Sections | BTUs (ΔT=50) | Watts (ΔT=50) | BTUs (ΔT=30) | Watts (ΔT=30) | Radiator Length (mm) | Radiator Weight (kg) | Primer (£) | Painted (£) | Powder Coated (£) | Metallic (£) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ANV-580-1 | 1 | 304 | 89 | 155 | 45 | 102 | 5 | £34.0 | £40.0 | £44.0 | £51.0 |
| ANV-580-2 | 2 | 608 | 178 | 310 | 90 | 174 | 11 | £68.0 | £80.0 | £88.0 | £102.0 |
| ANV-580-3 | 3 | 912 | 267 | 465 | 135 | 246 | 16 | £102.0 | £120.0 | £132.0 | £153.0 |
| ANV-580-4 | 4 | 1216 | 356 | 620 | 180 | 318 | 22 | £136.0 | £160.0 | £176.0 | £204.0 |
| ANV-580-5 | 5 | 1520 | 445 | 775 | 225 | 390 | 27 | £170.0 | £200.0 | £220.0 | £255.0 |
| ANV-580-6 | 6 | 1824 | 534 | 930 | 270 | 462 | 32 | £204.0 | £240.0 | £264.0 | £306.0 |
| ANV-580-7 | 7 | 2128 | 623 | 1085 | 315 | 534 | 38 | £238.0 | £280.0 | £308.0 | £357.0 |
| ANV-580-8 | 8 | 2432 | 712 | 1240 | 360 | 606 | 43 | £272.0 | £320.0 | £352.0 | £408.0 |
| ANV-580-9 | 9 | 2736 | 801 | 1395 | 405 | 678 | 49 | £306.0 | £360.0 | £396.0 | £459.0 |
| ANV-580-10 | 10 | 3040 | 890 | 1550 | 450 | 750 | 54 | £340.0 | £400.0 | £440.0 | £510.0 |
| ANV-580-11 | 11 | 3344 | 979 | 1705 | 495 | 822 | 59 | £374.0 | £440.0 | £484.0 | £561.0 |
| ANV-580-12 | 12 | 3648 | 1068 | 1860 | 540 | 894 | 65 | £408.0 | £480.0 | £528.0 | £612.0 |
| ANV-580-13 | 13 | 3952 | 1157 | 2015 | 585 | 966 | 70 | £442.0 | £520.0 | £572.0 | £663.0 |
| ANV-580-14 | 14 | 4256 | 1246 | 2170 | 630 | 1038 | 76 | £476.0 | £560.0 | £616.0 | £714.0 |
| ANV-580-15 | 15 | 4560 | 1335 | 2325 | 675 | 1110 | 81 | £510.0 | £600.0 | £660.0 | £765.0 |
| ANV-580-16 | 16 | 4864 | 1424 | 2480 | 720 | 1182 | 86 | £544.0 | £640.0 | £704.0 | £816.0 |
| ANV-580-17 | 17 | 5168 | 1513 | 2635 | 765 | 1254 | 92 | £578.0 | £680.0 | £748.0 | £867.0 |
| ANV-580-18 | 18 | 5472 | 1602 | 2790 | 810 | 1326 | 97 | £612.0 | £720.0 | £792.0 | £918.0 |
| ANV-580-19 | 19 | 5776 | 1691 | 2945 | 855 | 1398 | 103 | £646.0 | £760.0 | £836.0 | £969.0 |
| ANV-580-20 | 20 | 6080 | 1780 | 3100 | 900 | 1470 | 108 | £680.0 | £800.0 | £880.0 | £1020.0 |
More than 20 sections? Please call us on 01723 321 000
