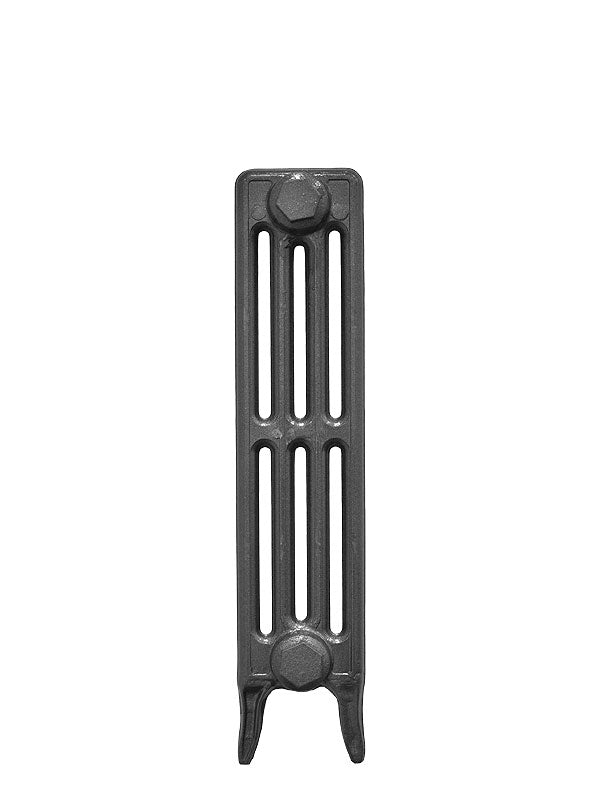

4 Column Cast Iron Radiators 660mm
4 Column Cast Iron Radiators 660mm
£59.40 inc VAT
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Trusted by Trade, Built to Last
The 4 Column 660mm Cast Iron Radiator is a popular choice among trade installers and interior professionals across the UK. With its classic Victorian design, strong heat output, and versatile height, it’s ideal for use throughout the home—blending seamlessly into both traditional and contemporary settings.
Favoured for its reliability, clean lines, and ease of installation, this radiator is part of our long-established column range dating back to the late 19th century. It’s widely specified in restoration projects, new builds, and period property upgrades.
Each radiator is cast using time-honoured techniques, hand-built to your exact requirements, and finished in your choice of primer, painted, or polished styles. Supplied fully assembled, pressure tested to 8 bar, and compliant with BS EN442 standards, the 4 Column 660mm offers excellent performance and lasting quality—backed by a 10-year guarantee.
Call 01723 321 000 to place your order or discuss trade supply options.
Product specifications
| BTU output (Delta 50) per section | |
|---|---|
| Watts Output (Delta 50) per section | |
| BTU output (Delta 30) per section | |
| Watts Output (Delta 30) per section | |
| Weight (kg) | |
| Section Length (mm) | |
| Height (mm) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.

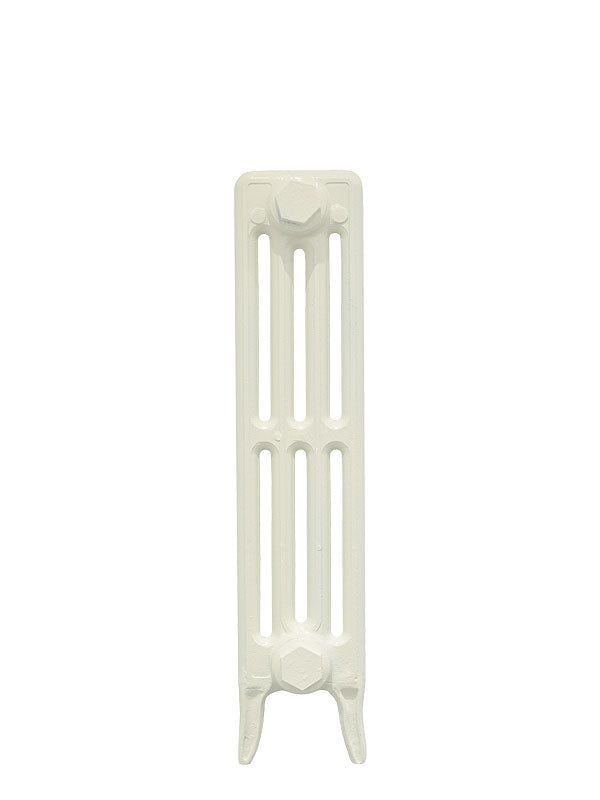

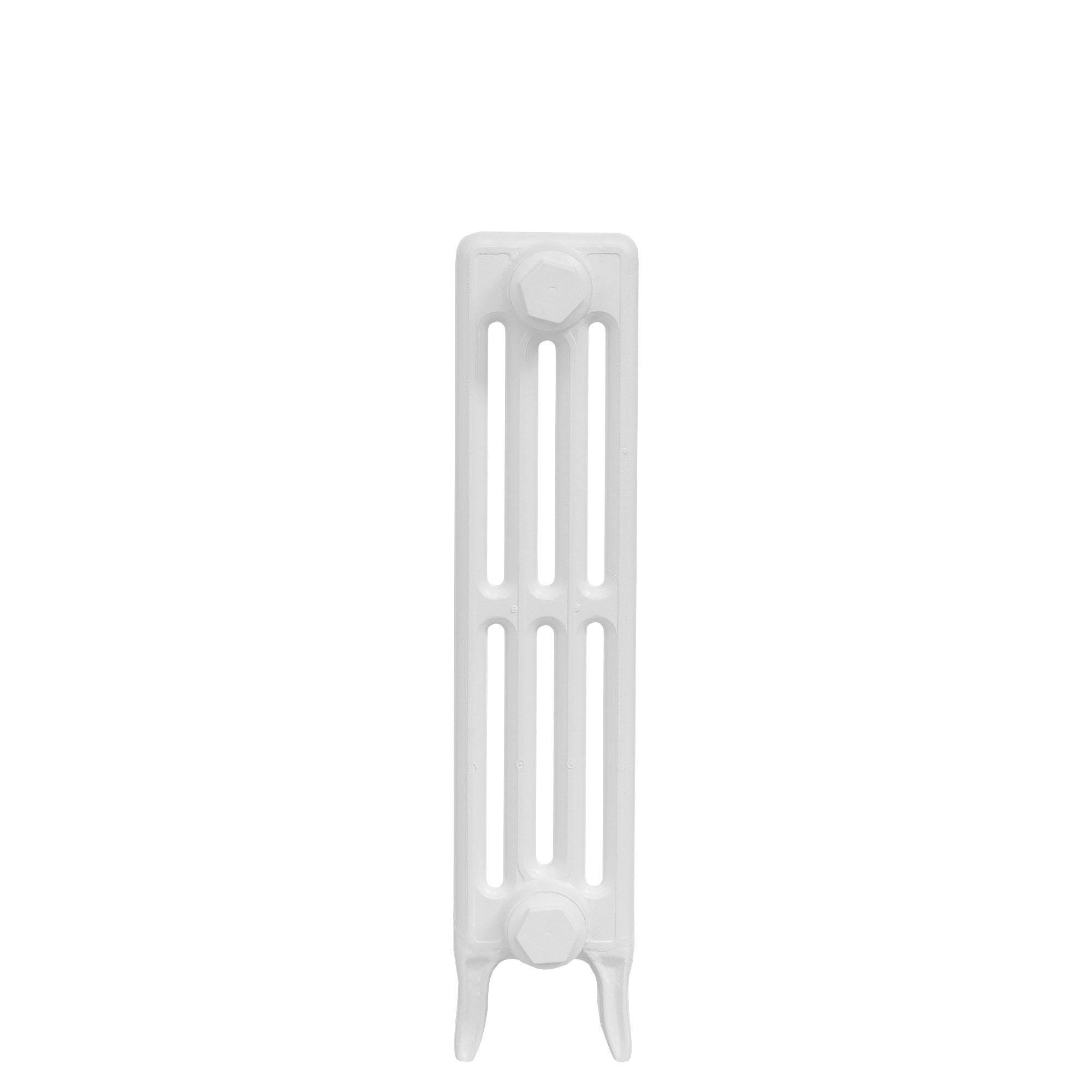

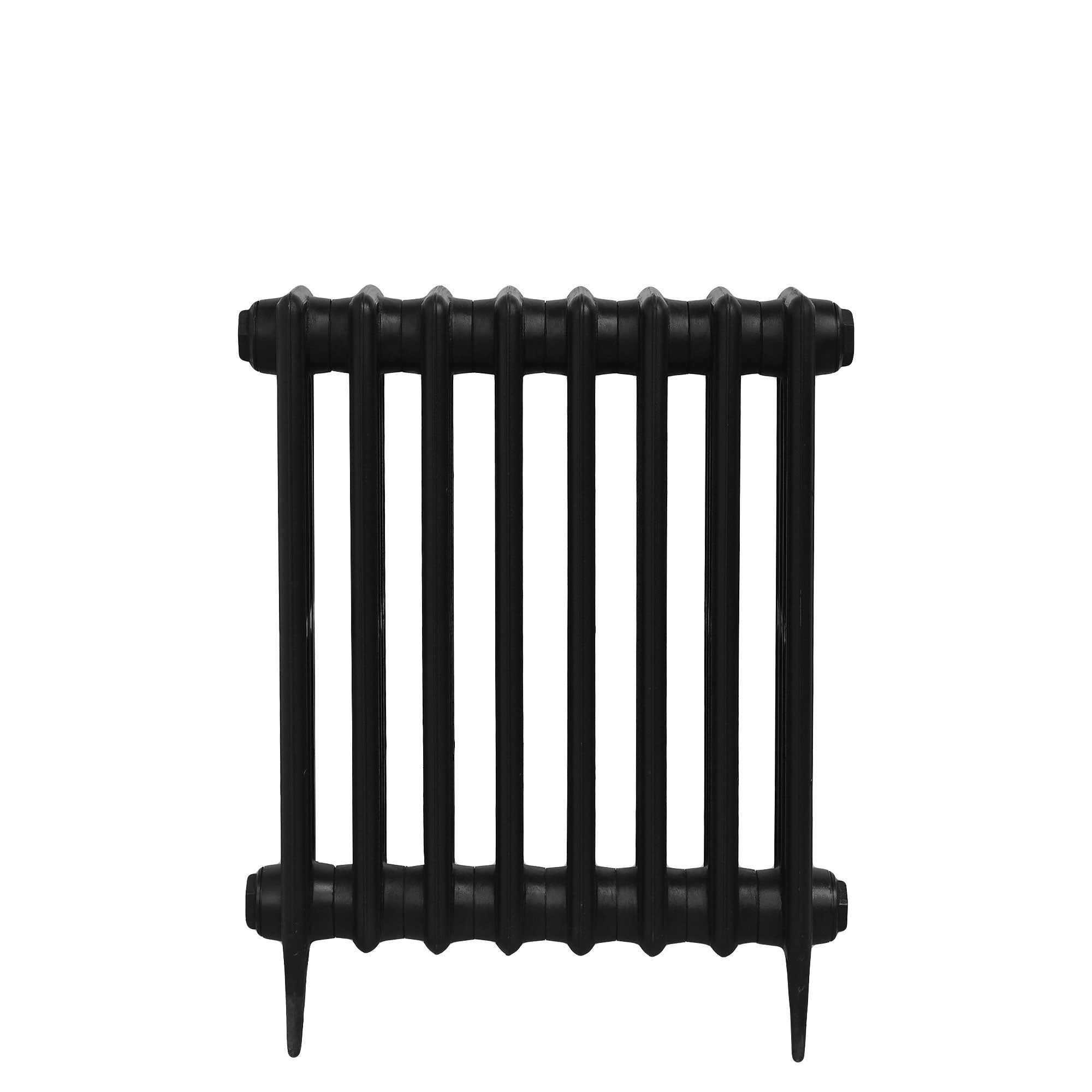

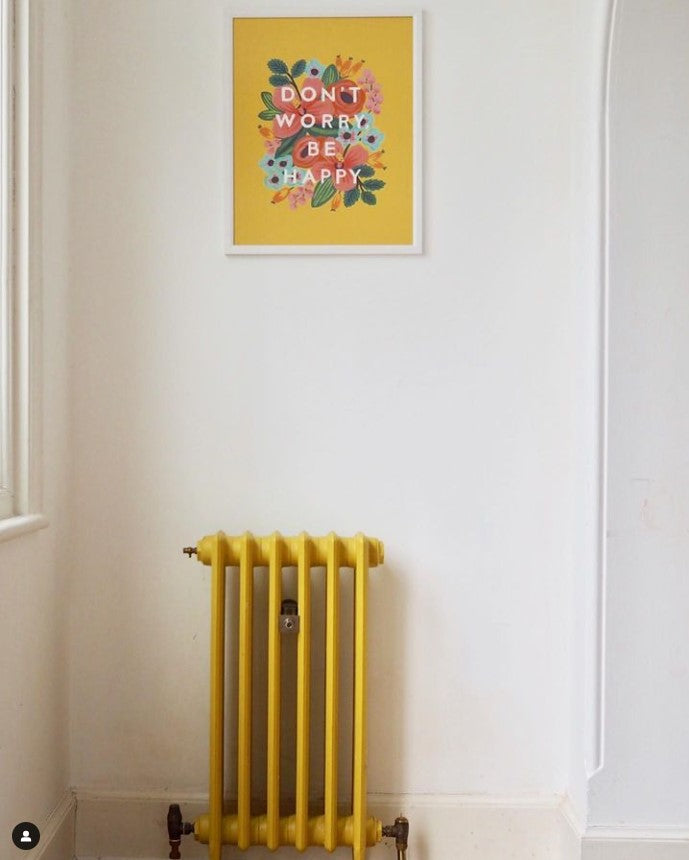

Painted Cast Iron Radiators - Stock Colours £7.20 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 01723 321 000 to discuss your requirements.
Metallic Cast Iron Radiators - from £20.40 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators - from £12 per section
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.
Hand Polished Cast Iron Radiators - from £30 per section inc VAT
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators - £12 per section inc VAT
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful English Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 01723 321 000.
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Sections | BTUs (ΔT=50) | Watts (ΔT=50) | BTUs (ΔT=30) | Watts (ΔT=30) | Radiator Length (mm) | Radiator Weight (kg) | Primer (£) | Painted (£) | Powder Coated (£) | Metallic (£) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4CL-660-1 | 1 | 283 | 83 | 144 | 42 | 90 | 5 | £17 | £23 | £31 | £38 |
| 4CL-660-2 | 2 | 566 | 166 | 288 | 84 | 150 | 10 | £33 | £45 | £61 | £75 |
| 4CL-660-3 | 3 | 849 | 249 | 432 | 126 | 210 | 15 | £50 | £68 | £92 | £113 |
| 4CL-660-4 | 4 | 1132 | 332 | 576 | 168 | 270 | 20 | £66 | £90 | £122 | £150 |
| 4CL-660-5 | 5 | 1415 | 415 | 720 | 210 | 330 | 25 | £83 | £113 | £153 | £188 |
| 4CL-660-6 | 6 | 1698 | 498 | 864 | 252 | 390 | 30 | £99 | £135 | £183 | £225 |
| 4CL-660-7 | 7 | 1981 | 581 | 1008 | 294 | 450 | 35 | £116 | £158 | £214 | £263 |
| 4CL-660-8 | 8 | 2264 | 664 | 1152 | 336 | 510 | 40 | £132 | £180 | £244 | £300 |
| 4CL-660-9 | 9 | 2547 | 747 | 1296 | 378 | 570 | 45 | £149 | £203 | £275 | £338 |
| 4CL-660-10 | 10 | 2830 | 830 | 1440 | 420 | 630 | 50 | £165 | £225 | £305 | £375 |
| 4CL-660-11 | 11 | 3113 | 913 | 1584 | 462 | 690 | 55 | £182 | £248 | £336 | £413 |
| 4CL-660-12 | 12 | 3396 | 996 | 1728 | 504 | 750 | 60 | £198 | £270 | £366 | £450 |
| 4CL-660-13 | 13 | 3679 | 1079 | 1872 | 546 | 810 | 65 | £215 | £293 | £397 | £488 |
| 4CL-660-14 | 14 | 3962 | 1162 | 2016 | 588 | 870 | 70 | £231 | £315 | £427 | £525 |
| 4CL-660-15 | 15 | 4245 | 1245 | 2160 | 630 | 930 | 75 | £248 | £338 | £458 | £563 |
| 4CL-660-16 | 16 | 4528 | 1328 | 2304 | 672 | 990 | 80 | £264 | £360 | £488 | £600 |
| 4CL-660-17 | 17 | 4811 | 1411 | 2448 | 714 | 1050 | 85 | £281 | £383 | £519 | £638 |
| 4CL-660-18 | 18 | 5094 | 1494 | 2592 | 756 | 1110 | 90 | £297 | £405 | £549 | £675 |
| 4CL-660-19 | 19 | 5377 | 1577 | 2736 | 798 | 1170 | 95 | £314 | £428 | £580 | £713 |
| 4CL-660-20 | 20 | 5660 | 1660 | 2880 | 840 | 1230 | 100 | £330 | £450 | £610 | £750 |
