4 Column Cast Iron Radiators 760mm
4 Column Cast Iron Radiators 760mm
£72.00 inc VAT
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
A Trade Favourite for Height and Heat

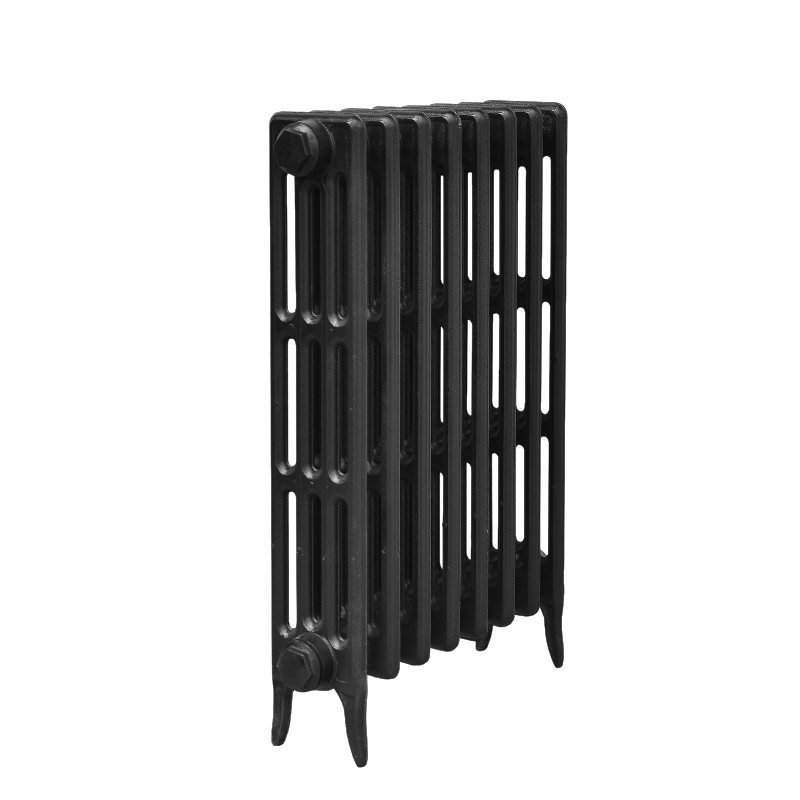

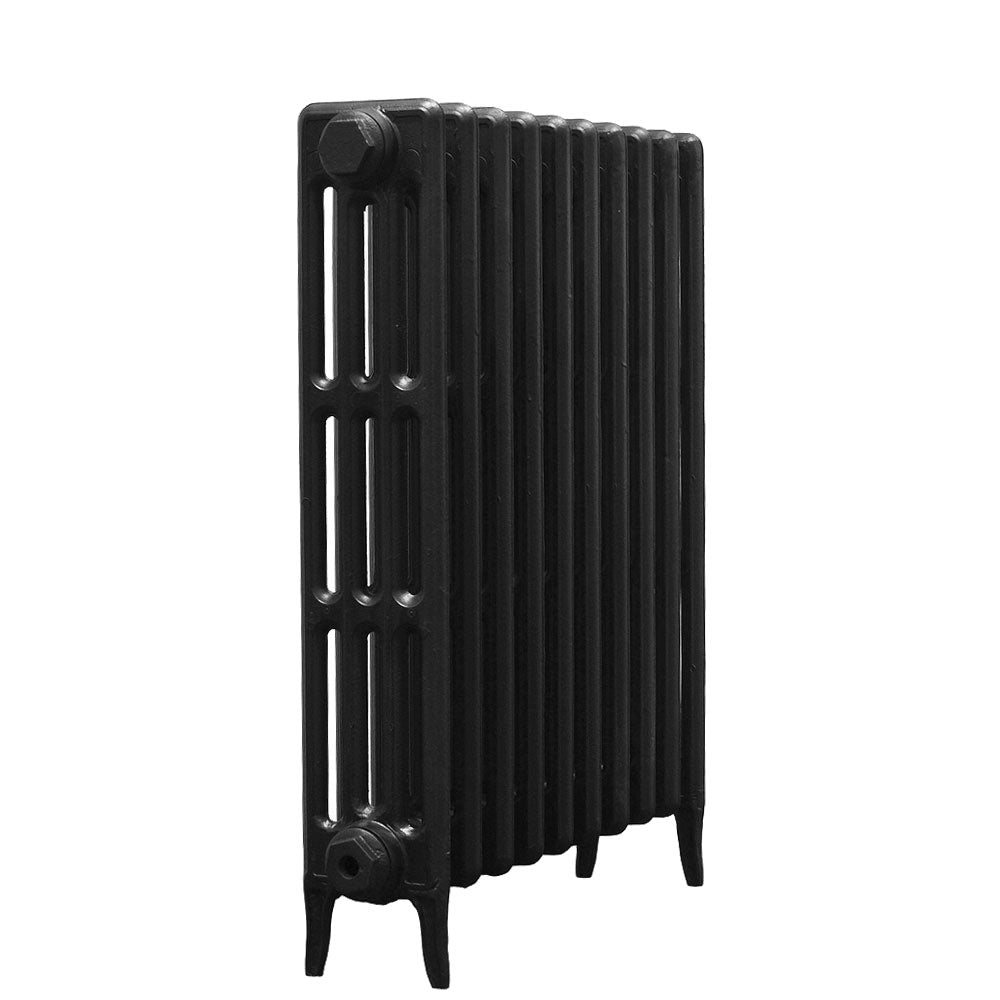

The 4 Column 760mm Cast Iron Radiator is one of the most popular sizes in our traditional column range—trusted by trade professionals and supplied nationwide. Its taller profile delivers excellent heat output, making it ideal for high-ceilinged rooms, feature walls, and period properties where both performance and classic style matter.
Originally designed in the late 1800s and still a design staple today, this Victorian-inspired radiator is known for its balanced proportions, elegant lines, and durable construction. It’s widely specified for both restoration projects and high-quality new builds across the UK.
Each radiator is cast using original moulds, hand-built to your exact specifications, and finished in your choice of primer, colour, or hand-polished style. Supplied fully assembled and pressure tested to 8 bar, the 760mm 4 Column radiator meets all BS EN442 standards and comes with a 10-year guarantee.
Call 01723 321 000 to order or speak to our team about trade supply options.
Product specifications
| BTU output (Delta 50) per section | |
|---|---|
| Watts Output (Delta 50) per section | |
| BTU output (Delta 30) per section | |
| Watts Output (Delta 30) per section | |
| Weight (kg) | |
| Section Length (mm) | |
| Height (mm) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.
Painted Cast Iron Radiators - Stock Colours £7.20 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 01723 321 000 to discuss your requirements.
Metallic Cast Iron Radiators - from £20.40 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators - from £12 per section
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.
Hand Polished Cast Iron Radiators - from £30 per section inc VAT
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators - £12 per section inc VAT
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful English Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 01723 321 000.
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Sections | BTUs (ΔT=50) | Watts (ΔT=50) | BTUs (ΔT=30) | Watts (ΔT=30) | Radiator Length (mm) | Radiator Weight (kg) | Primer (£) | Painted (£) | Powder Coated (£) | Metallic (£) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4CL-760-1 | 1 | 361 | 105 | 184 | 53 | 90 | 6 | £20.0 | £26.0 | £34.0 | £41.0 |
| 4CL-760-2 | 2 | 722 | 210 | 368 | 106 | 150 | 12 | £40.0 | £52.0 | £68.0 | £82.0 |
| 4CL-760-3 | 3 | 1083 | 315 | 552 | 159 | 210 | 18 | £60.0 | £78.0 | £102.0 | £123.0 |
| 4CL-760-4 | 4 | 1444 | 420 | 736 | 212 | 270 | 24 | £80.0 | £104.0 | £136.0 | £164.0 |
| 4CL-760-5 | 5 | 1805 | 525 | 920 | 265 | 330 | 30 | £100.0 | £130.0 | £170.0 | £205.0 |
| 4CL-760-6 | 6 | 2166 | 630 | 1104 | 318 | 390 | 36 | £120.0 | £156.0 | £204.0 | £246.0 |
| 4CL-760-7 | 7 | 2527 | 735 | 1288 | 371 | 450 | 42 | £140.0 | £182.0 | £238.0 | £287.0 |
| 4CL-760-8 | 8 | 2888 | 840 | 1472 | 424 | 510 | 48 | £160.0 | £208.0 | £272.0 | £328.0 |
| 4CL-760-9 | 9 | 3249 | 945 | 1656 | 477 | 570 | 54 | £180.0 | £234.0 | £306.0 | £369.0 |
| 4CL-760-10 | 10 | 3610 | 1050 | 1840 | 530 | 630 | 60 | £200.0 | £260.0 | £340.0 | £410.0 |
| 4CL-760-11 | 11 | 3971 | 1155 | 2024 | 583 | 690 | 66 | £220.0 | £286.0 | £374.0 | £451.0 |
| 4CL-760-12 | 12 | 4332 | 1260 | 2208 | 636 | 750 | 72 | £240.0 | £312.0 | £408.0 | £492.0 |
| 4CL-760-13 | 13 | 4693 | 1365 | 2392 | 689 | 810 | 78 | £260.0 | £338.0 | £442.0 | £533.0 |
| 4CL-760-14 | 14 | 5054 | 1470 | 2576 | 742 | 870 | 84 | £280.0 | £364.0 | £476.0 | £574.0 |
| 4CL-760-15 | 15 | 5415 | 1575 | 2760 | 795 | 930 | 90 | £300.0 | £390.0 | £510.0 | £615.0 |
| 4CL-760-16 | 16 | 5776 | 1680 | 2944 | 848 | 990 | 96 | £320.0 | £416.0 | £544.0 | £656.0 |
| 4CL-760-17 | 17 | 6137 | 1785 | 3128 | 901 | 1050 | 102 | £340.0 | £442.0 | £578.0 | £697.0 |
| 4CL-760-18 | 18 | 6498 | 1890 | 3312 | 954 | 1110 | 108 | £360.0 | £468.0 | £612.0 | £738.0 |
| 4CL-760-19 | 19 | 6859 | 1995 | 3496 | 1007 | 1170 | 114 | £380.0 | £494.0 | £646.0 | £779.0 |
| 4CL-760-20 | 20 | 7220 | 2100 | 3680 | 1060 | 1230 | 120 | £400.0 | £520.0 | £680.0 | £820.0 |
More than 20 sections? Please call us on 01723 321 000
