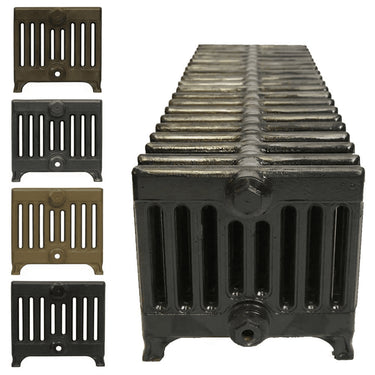

9 Column Cast Iron Radiators 350mm
9 Column Cast Iron Radiators 350mm
£135.00 inc VAT
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Stylish and Perfect for Under Windows
The 9 Column Cast Iron Radiator is a classic design originally inspired by the American Radiator Company and developed to sit beneath tall windows in grand Georgian homes. Today, it's the ideal solution for conservatories, bay windows, or any space where height is limited but strong heat output is essential.
Part of our traditional column radiator collection, this 9 column model is a timeless design also known as a neo-classic or Victorian cast iron radiator. Its elegant vertical lines and compact depth make it a versatile choice for both period properties and contemporary spaces looking for heritage appeal.
Cast using traditional techniques and built by hand in our UK workshop, each radiator is fully assembled, pressure tested to 8 bar, and finished to your exact specification. Choose from a wide range of painted, polished, or metallic finishes to suit your interior.
Backed by a 10-year guarantee and compliant with all BS EN442 standards, this is a radiator built for performance and made to last.
Call 01723 321 000 to customise and order your 9 Column radiator today.
Product specifications
| BTU output (Delta 50) per section | |
|---|---|
| Watts Output (Delta 50) per section | |
| BTU output (Delta 30) per section | |
| Watts Output (Delta 30) per section | |
| Weight (kg) | |
| Section Length (mm) | |
| Height (mm) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.
Painted Cast Iron Radiators - Stock Colours £7.20 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 01723 321 000 to discuss your requirements.
Metallic Cast Iron Radiators - from £20.40 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators - from £12 per section
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.
Hand Polished Cast Iron Radiators - from £30 per section inc VAT
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators - £12 per section inc VAT
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful English Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 01723 321 000.
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Sections | BTUs (ΔT=50) | Watts (ΔT=50) | BTUs (ΔT=30) | Watts (ΔT=30) | Radiator Length (mm) | Radiator Weight (kg) | Primer (£) | Painted (£) | Powder Coated (£) | Metallic (£) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9CL-350-1 | 1 | 351 | 100 | 179 | 51 | 88 | 7 | £37.5 | £43.5 | £47.5 | £54.5 |
| 9CL-350-2 | 2 | 702 | 200 | 358 | 102 | 146 | 14 | £75.0 | £87.0 | £95.0 | £109.0 |
| 9CL-350-3 | 3 | 1053 | 300 | 537 | 153 | 204 | 21 | £112.5 | £130.5 | £142.5 | £163.5 |
| 9CL-350-4 | 4 | 1404 | 400 | 716 | 204 | 262 | 28 | £150.0 | £174.0 | £190.0 | £218.0 |
| 9CL-350-5 | 5 | 1755 | 500 | 895 | 255 | 320 | 35 | £187.5 | £217.5 | £237.5 | £272.5 |
| 9CL-350-6 | 6 | 2106 | 600 | 1074 | 306 | 378 | 42 | £225.0 | £261.0 | £285.0 | £327.0 |
| 9CL-350-7 | 7 | 2457 | 700 | 1253 | 357 | 436 | 49 | £262.5 | £304.5 | £332.5 | £381.5 |
| 9CL-350-8 | 8 | 2808 | 800 | 1432 | 408 | 494 | 56 | £300.0 | £348.0 | £380.0 | £436.0 |
| 9CL-350-9 | 9 | 3159 | 900 | 1611 | 459 | 552 | 63 | £337.5 | £391.5 | £427.5 | £490.5 |
| 9CL-350-10 | 10 | 3510 | 1000 | 1790 | 510 | 610 | 70 | £375.0 | £435.0 | £475.0 | £545.0 |
| 9CL-350-11 | 11 | 3861 | 1100 | 1969 | 561 | 668 | 77 | £412.5 | £478.5 | £522.5 | £599.5 |
| 9CL-350-12 | 12 | 4212 | 1200 | 2148 | 612 | 726 | 84 | £450.0 | £522.0 | £570.0 | £654.0 |
| 9CL-350-13 | 13 | 4563 | 1300 | 2327 | 663 | 784 | 91 | £487.5 | £565.5 | £617.5 | £708.5 |
| 9CL-350-14 | 14 | 4914 | 1400 | 2506 | 714 | 842 | 98 | £525.0 | £609.0 | £665.0 | £763.0 |
| 9CL-350-15 | 15 | 5265 | 1500 | 2685 | 765 | 900 | 105 | £562.5 | £652.5 | £712.5 | £817.5 |
| 9CL-350-16 | 16 | 5616 | 1600 | 2864 | 816 | 958 | 112 | £600.0 | £696.0 | £760.0 | £872.0 |
| 9CL-350-17 | 17 | 5967 | 1700 | 3043 | 867 | 1016 | 119 | £637.5 | £739.5 | £807.5 | £926.5 |
| 9CL-350-18 | 18 | 6318 | 1800 | 3222 | 918 | 1074 | 126 | £675.0 | £783.0 | £855.0 | £981.0 |
| 9CL-350-19 | 19 | 6669 | 1900 | 3401 | 969 | 1132 | 133 | £712.5 | £826.5 | £902.5 | £1035.5 |
| 9CL-350-20 | 20 | 7020 | 2000 | 3580 | 1020 | 1190 | 140 | £750.0 | £870.0 | £950.0 | £1090.0 |
More than 20 sections? Please call us on 01723 321 000
