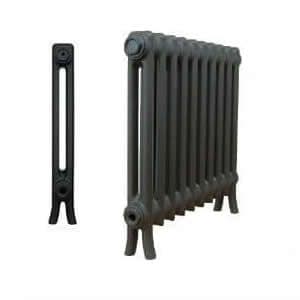

Classic 2 Column Cast Iron Radiators 500mm
Classic 2 Column Cast Iron Radiators 500mm
£57.60 inc VAT
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Slim, Subtle, and Space-Saving
The 500mm 2 Column Classic Cast Iron Radiator is the most compact and lowest heat output option in the Classic range—perfect for smaller rooms, under-window spaces, or where subtle, space-efficient heating is needed. Its slim profile and traditional styling make it a discreet yet elegant choice for both period and modern interiors.
Each radiator is hand-assembled to order in our North Yorkshire workshop and finished to your exact requirements. Use the selection above to choose from our most popular sizes and finishes, or call us on 01723 321 000 for custom lengths or colour-matching options.
Fully pressure-tested to 8 bar and backed by a 25-year guarantee, this radiator offers dependable performance and classic design in a compact form.
Delivery is via kerbside pallet service. For lead time updates or specific delivery arrangements, our team is here to help.
Product specifications
| BTU output (Delta 50) per section | |
|---|---|
| Watts Output (Delta 50) per section | |
| BTU output (Delta 30) per section | |
| Watts Output (Delta 30) per section | |
| Weight (kg) | |
| Section Length (mm) | |
| Height (mm) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.
Painted Cast Iron Radiators - Stock Colours £7.20 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 01723 321 000 to discuss your requirements.
Metallic Cast Iron Radiators - from £20.40 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators - from £12 per section
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.
Hand Polished Cast Iron Radiators - from £30 per section inc VAT
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators - £12 per section inc VAT
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful English Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 01723 321 000.
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Sections | BTUs (ΔT=50) | Watts (ΔT=50) | BTUs (ΔT=30) | Watts (ΔT=30) | Radiator Length (mm) | Radiator Weight (kg) | Primer (£) | Painted (£) | Powder Coated (£) | Metallic (£) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NC2-500-1 | 1 | 134 | 39 | 68 | 20 | 90 | 3 | £16.0 | £22.0 | £26.0 | £33.0 |

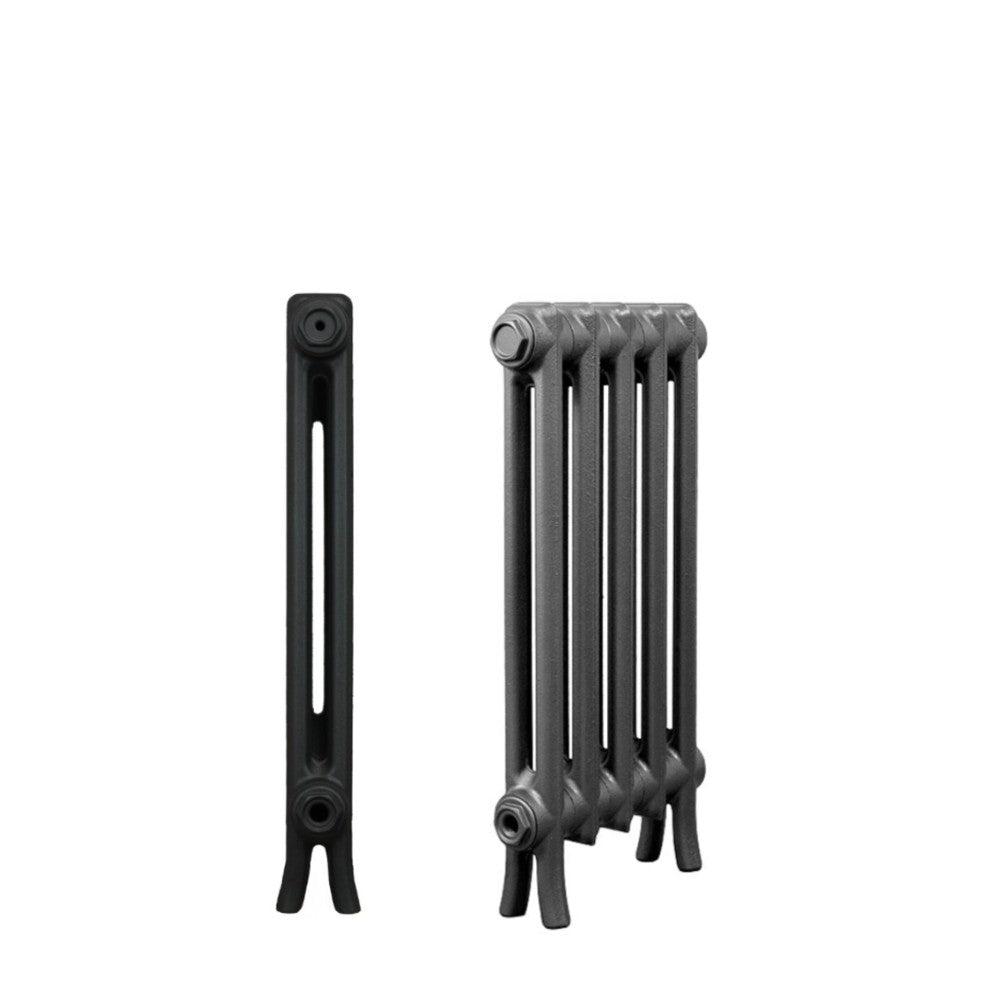

| NC2-500-2 | 2 | 268 | 78 | 136 | 40 | 150 | 6 | £32.0 | £44.0 | £52.0 | £66.0 |
| NC2-500-3 | 3 | 402 | 117 | 204 | 60 | 210 | 10 | £48.0 | £66.0 | £78.0 | £99.0 |
| NC2-500-4 | 4 | 536 | 156 | 272 | 80 | 270 | 13 | £64.0 | £88.0 | £104.0 | £132.0 |
| NC2-500-5 | 5 | 670 | 195 | 340 | 100 | 330 | 16 | £80.0 | £110.0 | £130.0 | £165.0 |
| NC2-500-6 | 6 | 804 | 234 | 408 | 120 | 390 | 19 | £96.0 | £132.0 | £156.0 | £198.0 |
| NC2-500-7 | 7 | 938 | 273 | 476 | 140 | 450 | 22 | £112.0 | £154.0 | £182.0 | £231.0 |
| NC2-500-8 | 8 | 1072 | 312 | 544 | 160 | 510 | 26 | £128.0 | £176.0 | £208.0 | £264.0 |
| NC2-500-9 | 9 | 1206 | 351 | 612 | 180 | 570 | 29 | £144.0 | £198.0 | £234.0 | £297.0 |
| NC2-500-10 | 10 | 1340 | 390 | 680 | 200 | 630 | 32 | £160.0 | £220.0 | £260.0 | £330.0 |
| NC2-500-11 | 11 | 1474 | 429 | 748 | 220 | 690 | 35 | £176.0 | £242.0 | £286.0 | £363.0 |
| NC2-500-12 | 12 | 1608 | 468 | 816 | 240 | 750 | 38 | £192.0 | £264.0 | £312.0 | £396.0 |
| NC2-500-13 | 13 | 1742 | 507 | 884 | 260 | 810 | 42 | £208.0 | £286.0 | £338.0 | £429.0 |
| NC2-500-14 | 14 | 1876 | 546 | 952 | 280 | 870 | 45 | £224.0 | £308.0 | £364.0 | £462.0 |
| NC2-500-15 | 15 | 2010 | 585 | 1020 | 300 | 930 | 48 | £240.0 | £330.0 | £390.0 | £495.0 |
| NC2-500-16 | 16 | 2144 | 624 | 1088 | 320 | 990 | 51 | £256.0 | £352.0 | £416.0 | £528.0 |
| NC2-500-17 | 17 | 2278 | 663 | 1156 | 340 | 1050 | 54 | £272.0 | £374.0 | £442.0 | £561.0 |
| NC2-500-18 | 18 | 2412 | 702 | 1224 | 360 | 1110 | 58 | £288.0 | £396.0 | £468.0 | £594.0 |
| NC2-500-19 | 19 | 2546 | 741 | 1292 | 380 | 1170 | 61 | £304.0 | £418.0 | £494.0 | £627.0 |
| NC2-500-20 | 20 | 2680 | 780 | 1360 | 400 | 1230 | 64 | £320.0 | £440.0 | £520.0 | £660.0 |
More than 20 sections? Please call us on 01723 321 000
