Classic 3 Column Cast Iron Radiators 500mm
Classic 3 Column Cast Iron Radiators 500mm
£64.80 inc VAT
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Compact, Classic and Efficient

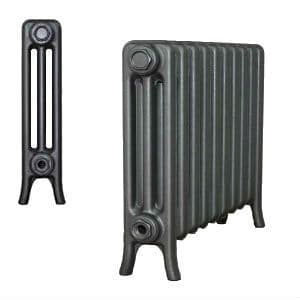

The 500mm 3 Column Classic Cast Iron Radiator offers a low, elegant profile with excellent heat distribution—making it an ideal choice for beneath windows, in bay areas, or wherever space is limited. Its traditional column design brings understated period charm to both classic and contemporary interiors.
Hand-assembled in our North Yorkshire workshop, each radiator is built to order and finished to your exact specifications. Choose from a wide range of sizes, colours, and finishes using the options above, or contact us on 01723 321 000 for custom sizes or colour-matching.
Each radiator is pressure-tested to 8 bar and backed by a 25-year guarantee, ensuring dependable performance and timeless style that lasts for generations.
Delivery is via kerbside pallet service. For current lead times or delivery enquiries, please get in touch with our team.
Product specifications
| BTU output (Delta 50) per section | |
|---|---|
| Watts Output (Delta 50) per section | |
| BTU output (Delta 30) per section | |
| Watts Output (Delta 30) per section | |
| Weight (kg) | |
| Section Length (mm) | |
| Height (mm) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.
Painted Cast Iron Radiators - Stock Colours £7.20 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 01723 321 000 to discuss your requirements.
Metallic Cast Iron Radiators - from £20.40 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators - from £12 per section
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.
Hand Polished Cast Iron Radiators - from £30 per section inc VAT
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators - £12 per section inc VAT
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful English Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 01723 321 000.
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Sections | BTUs (ΔT=50) | Watts (ΔT=50) | BTUs (ΔT=30) | Watts (ΔT=30) | Radiator Length (mm) | Radiator Weight (kg) | Primer (£) | Painted (£) | Powder Coated (£) | Metallic (£) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NC3-500-1 | 1 | 180 | 53 | 91 | 27 | 90 | 3 | £18 | £24 | £28 | £35 |
| NC3-500-2 | 2 | 360 | 106 | 182 | 54 | 150 | 7 | £36 | £48 | £56 | £70 |
| NC3-500-3 | 3 | 540 | 159 | 273 | 81 | 210 | 10 | £54 | £72 | £84 | £105 |
| NC3-500-4 | 4 | 720 | 212 | 364 | 108 | 270 | 14 | £72 | £96 | £112 | £140 |
| NC3-500-5 | 5 | 900 | 265 | 455 | 135 | 330 | 17 | £90 | £120 | £140 | £175 |
| NC3-500-6 | 6 | 1080 | 318 | 546 | 162 | 390 | 20 | £108 | £144 | £168 | £210 |
| NC3-500-7 | 7 | 1260 | 371 | 637 | 189 | 450 | 24 | £126 | £168 | £196 | £245 |
| NC3-500-8 | 8 | 1440 | 424 | 728 | 216 | 510 | 27 | £144 | £192 | £224 | £280 |
| NC3-500-9 | 9 | 1620 | 477 | 819 | 243 | 570 | 31 | £162 | £216 | £252 | £315 |
| NC3-500-10 | 10 | 1800 | 530 | 910 | 270 | 630 | 34 | £180 | £240 | £280 | £350 |
| NC3-500-11 | 11 | 1980 | 583 | 1001 | 297 | 690 | 37 | £198 | £264 | £308 | £385 |
| NC3-500-12 | 12 | 2160 | 636 | 1092 | 324 | 750 | 41 | £216 | £288 | £336 | £420 |
| NC3-500-13 | 13 | 2340 | 689 | 1183 | 351 | 810 | 44 | £234 | £312 | £364 | £455 |
| NC3-500-14 | 14 | 2520 | 742 | 1274 | 378 | 870 | 48 | £252 | £336 | £392 | £490 |
| NC3-500-15 | 15 | 2700 | 795 | 1365 | 405 | 930 | 51 | £270 | £360 | £420 | £525 |
| NC3-500-16 | 16 | 2880 | 848 | 1456 | 432 | 990 | 54 | £288 | £384 | £448 | £560 |
| NC3-500-17 | 17 | 3060 | 901 | 1547 | 459 | 1050 | 58 | £306 | £408 | £476 | £595 |
| NC3-500-18 | 18 | 3240 | 954 | 1638 | 486 | 1110 | 61 | £324 | £432 | £504 | £630 |
| NC3-500-19 | 19 | 3420 | 1007 | 1729 | 513 | 1170 | 65 | £342 | £456 | £532 | £665 |
| NC3-500-20 | 20 | 3600 | 1060 | 1820 | 540 | 1230 | 68 | £360 | £480 | £560 | £700 |
