Princess Cast Iron Radiators 560mm
Princess Cast Iron Radiators 560mm
£108.00 inc VAT
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

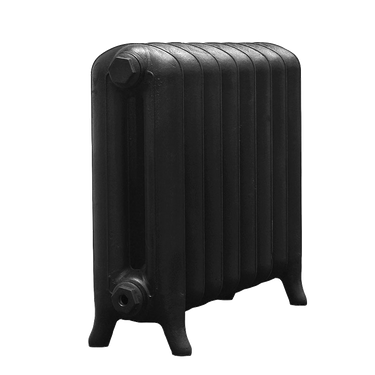

Compact Heritage with Elegant Lines
The Princess 560mm Cast Iron Radiator is the smallest in our iconic Princess range, faithfully reproduced from original 1898 moulds by the Ideal Radiator Company. With its gently rounded columns and refined silhouette, this radiator delivers classic late Victorian styling in a compact and efficient form.
Indistinguishable from original antique models and popular across North America and Europe, the Princess 560mm is ideal for use under windows or in smaller spaces where period charm and reliable heat output are essential.
Hand-built to order and available in a wide choice of painted, polished, or specialist finishes, every radiator is fully assembled, pressure tested to 8 bar, and backed by a 10-year guarantee. Tested to meet BS EN442 standards, this is traditional design, redefined for modern living.
Call 01723 321 000 to customise or place your order today.
Product specifications
| BTU output (Delta 50) per section | |
|---|---|
| Watts Output (Delta 50) per section | |
| BTU output (Delta 30) per section | |
| Watts Output (Delta 30) per section | |
| Weight (kg) | |
| Section Length (mm) | |
| Height (mm) |
Finishes and Lead Times
By default all of our cast iron radiators come in factory primer. Our lead times do vary throughout the year and depending upon the product finish chosen.
Painted Cast Iron Radiators - Stock Colours £7.20 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
We are able to paint radiators in any RAL colour, please contact us on 01723 321 000 to discuss your requirements.
Metallic Cast Iron Radiators - from £20.40 per section inc VAT
 |
 |
 |
 |
 |
 |
 |
 |
Metallic polished radiators are priced based on size with larger radiators costing slightly more.
Powder Coated Cast Iron Radiators - from £12 per section
 |
 |
 |
 |
 |
 |
 |
 |
Powder coated radiators are priced based on size with larger radiators costing slightly more.
Hand Polished Cast Iron Radiators - from £30 per section inc VAT
Hand polishing cast iron radiators is a very time consuming process. Each section is individually polished with a series of bespoke polishing wheels.
We only polish the visible areas - the front, the top and on the end sections but not on the back which would be placed against the wall.
Branded Paint for Cast Iron Radiators - £12 per section inc VAT
We are able to paint your cast iron radiators in any Farrow and Ball, Sanderson, Little Greene, Fired Earth or any other branded paint.
 |
 |
| We also Stock the complete range of Farrow and Ball Colours | We also have access to the beautiful English Heritage range of paints from Little Greene. |
Other paint colours are available and other RAL powder coat colours finished can be ordered.
If the colour you require is not above, please call us on 01723 321 000.
Oversized Radiators
Our cast iron radiators are normally delivered via third-party pallet networks, using standard-sized pallets. For radiators that exceed these dimensions, we supply them in pre-assembled blocks along with the necessary assembly tools and clear, easy-to-follow instructions to ensure straightforward on-site assembly.
Full Specification Table
| Product Code | Sections | BTUs (ΔT=50) | Watts (ΔT=50) | BTUs (ΔT=30) | Watts (ΔT=30) | Radiator Length (mm) | Radiator Weight (kg) | Primer (£) | Painted (£) | Powder Coated (£) | Metallic (£) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PCS-560-1 | 1 | 296 | 86 | 151 | 43 | 107 | 8 | £30.0 | £36.0 | £40.0 | £47.0 |
| PCS-560-2 | 2 | 592 | 172 | 302 | 86 | 184 | 16 | £60.0 | £72.0 | £80.0 | £94.0 |
| PCS-560-3 | 3 | 888 | 258 | 453 | 129 | 261 | 24 | £90.0 | £108.0 | £120.0 | £141.0 |
| PCS-560-4 | 4 | 1184 | 344 | 604 | 172 | 338 | 32 | £120.0 | £144.0 | £160.0 | £188.0 |
| PCS-560-5 | 5 | 1480 | 430 | 755 | 215 | 415 | 40 | £150.0 | £180.0 | £200.0 | £235.0 |
| PCS-560-6 | 6 | 1776 | 516 | 906 | 258 | 492 | 48 | £180.0 | £216.0 | £240.0 | £282.0 |
| PCS-560-7 | 7 | 2072 | 602 | 1057 | 301 | 569 | 56 | £210.0 | £252.0 | £280.0 | £329.0 |
| PCS-560-8 | 8 | 2368 | 688 | 1208 | 344 | 646 | 64 | £240.0 | £288.0 | £320.0 | £376.0 |
| PCS-560-9 | 9 | 2664 | 774 | 1359 | 387 | 723 | 72 | £270.0 | £324.0 | £360.0 | £423.0 |
| PCS-560-10 | 10 | 2960 | 860 | 1510 | 430 | 800 | 80 | £300.0 | £360.0 | £400.0 | £470.0 |
| PCS-560-11 | 11 | 3256 | 946 | 1661 | 473 | 877 | 88 | £330.0 | £396.0 | £440.0 | £517.0 |
| PCS-560-12 | 12 | 3552 | 1032 | 1812 | 516 | 954 | 96 | £360.0 | £432.0 | £480.0 | £564.0 |
| PCS-560-13 | 13 | 3848 | 1118 | 1963 | 559 | 1031 | 104 | £390.0 | £468.0 | £520.0 | £611.0 |
| PCS-560-14 | 14 | 4144 | 1204 | 2114 | 602 | 1108 | 112 | £420.0 | £504.0 | £560.0 | £658.0 |
| PCS-560-15 | 15 | 4440 | 1290 | 2265 | 645 | 1185 | 120 | £450.0 | £540.0 | £600.0 | £705.0 |
| PCS-560-16 | 16 | 4736 | 1376 | 2416 | 688 | 1262 | 128 | £480.0 | £576.0 | £640.0 | £752.0 |
| PCS-560-17 | 17 | 5032 | 1462 | 2567 | 731 | 1339 | 136 | £510.0 | £612.0 | £680.0 | £799.0 |
| PCS-560-18 | 18 | 5328 | 1548 | 2718 | 774 | 1416 | 144 | £540.0 | £648.0 | £720.0 | £846.0 |
| PCS-560-19 | 19 | 5624 | 1634 | 2869 | 817 | 1493 | 152 | £570.0 | £684.0 | £760.0 | £893.0 |
| PCS-560-20 | 20 | 5920 | 1720 | 3020 | 860 | 1570 | 160 | £600.0 | £720.0 | £800.0 | £940.0 |
More than 20 sections? Please call us on 01723 321 000
